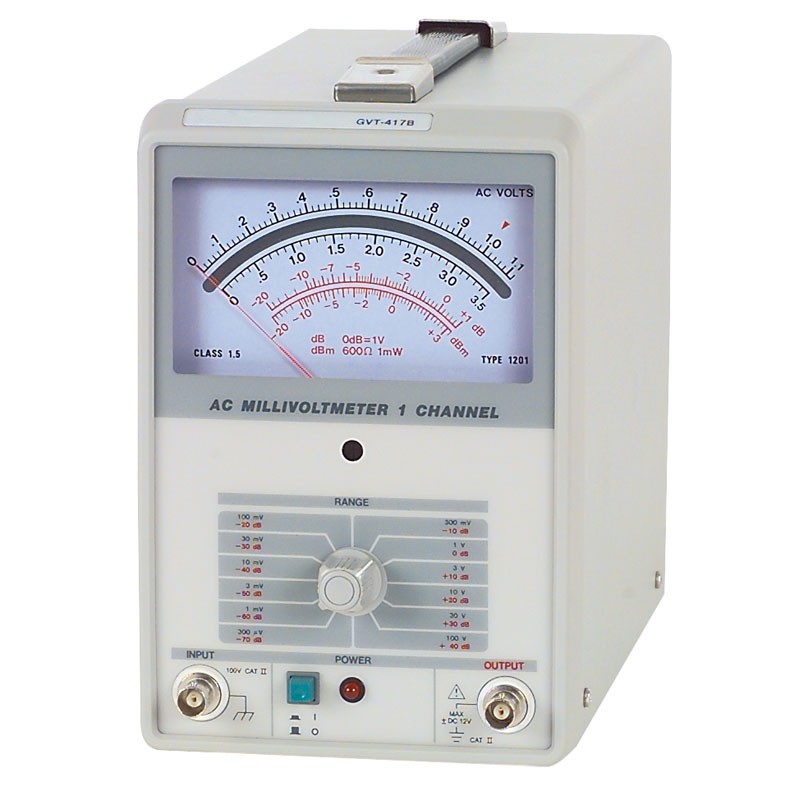

1MHz AC millivoltmeter
GVT417 is a millivoltmeter for the measuring of sinusoidal voltages from 10μV to 100V, in the 10 Hz to 1MHz band. The dial is graduated in volts and dB for the direct measurement of amplifier increases.
RANGES V
300 µV - 1 - 3 - 10 - 30 - 100 - 300mV 1 - 3 - 10 - 30 - 100V
RANGES dB
-70 -60 -50 -40 -30 -20 -10 0 +10 +20 +30 +40 dB
ACCURACY
3 % from 20 Hz to 200kHz - 10% from 10 Hz to 1MHz
IMPEDANCE
1 MΩ - 40 pF
OVERLOAD
from 300µV to 0,3V: 150VAC / from 1 to 100 VAC: 300 VAC
OUTPUT
A 100mVrms copy output for the full deviation allows the GVT417 to be used as an attenuator/ amplifier at a constant signal input level.
OTHER FEATURES
Power supply: 115–230VAC 50Hz.
Dim. 142 x 210mm. Depth: 235mm
Weight: 3kg
CEI1010 CATII CL1 300Vrms pol2
GVT417 is a millivoltmeter for the measuring of sinusoidal voltages from 10μV to 100V, in the 10 Hz to 1MHz band. The dial is graduated in volts and dB for the direct measurement of amplifier increases.
-
