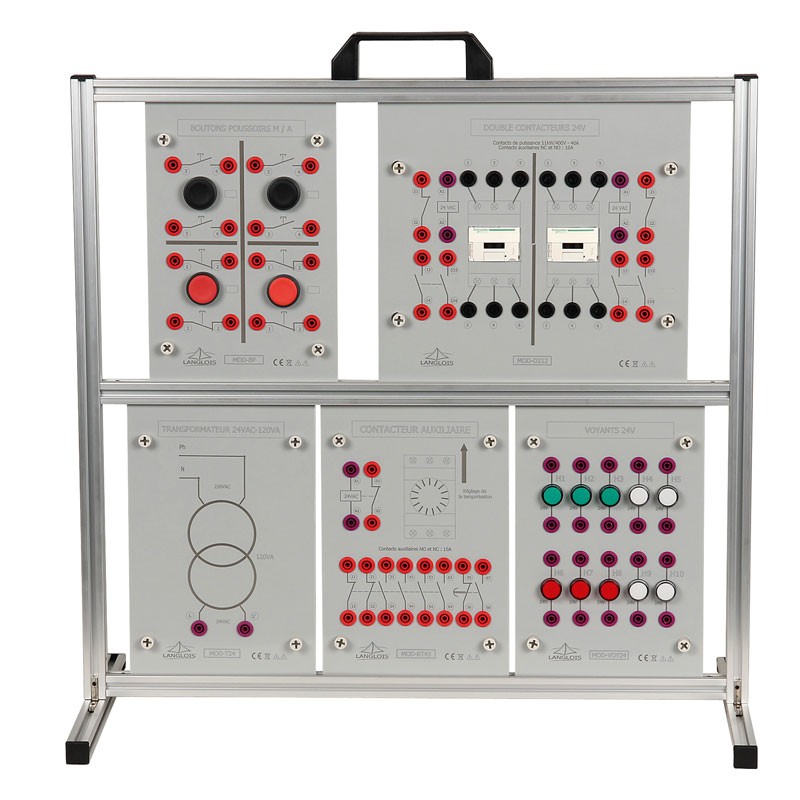

Study of contactor + timing

Educational objectives
• To study the connection diagram of 2 contactors and 1 timer
• To study the configuration of a timer.

Comprises
• 1 module 2 auxiliary contactors 24VAC. Contacts 2 x 5 NO + 2 x 1 NC
• 1 module 1 timed contactor with 1 NO + NC timed and 3 NO + 3 NC
• 1 transformer module 230VAC - 24VAC
• 1 module 2 On pushbuttons and 2 Off pushbuttons.
• 1 module of 10 Indicator lights 24VAC.
• 1 set of safety leads for carrying out the different practical works.

Frame type
Selected reference QUICK-AK10
Quantity

Selected reference QUICK-AK10
