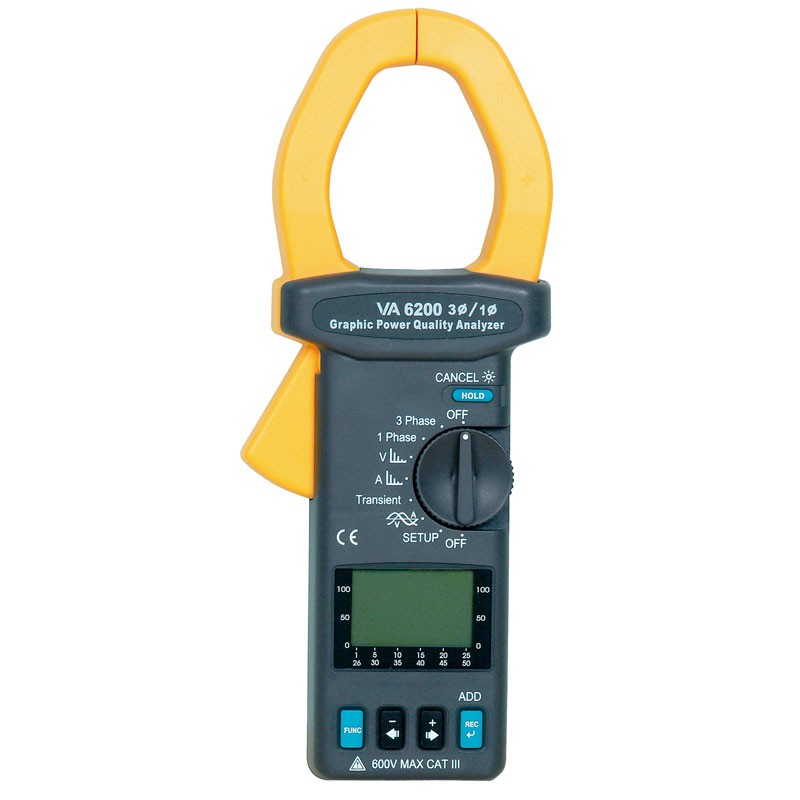

Network mains analysis clamp

The screen on this clamp can be used either as a numeric display or as a graphical screen like an oscilloscope, or as a logging instrument. The clamp measures the true RMS voltage and current, apparent, reactive, active, balanced three-phase and single-phase power, cosϕ, peak factor, total distortion, power consumption and max power demand. In graphics mode, it displays and quantifies the first 50 harmonics of the signal, the form of the U and I signals, the single-phase and three-phase diagram. In logging mode, the clamp stores information in its memory.
The sampling frequency and the start/stop cues can be programmed.
Long acquisitions at high frequencies, with several simultaneous quantities, are possible by using an RS232 output to a PC and special software.

Selected reference VA6200
Quantity

Selected reference VA6200
Selected reference VA6200

• Measurement of the maximum demand in kW and kVA
• Programmable threshold for transient capture (128 events)
• 32 to 256 points/cycle  can be saved on the internal memory
• Memory size: 50,000 logs can be programmed.
• Real time output of: oscillograms, power, settings and harmonics
• Autopower off automatically if not used
• Opto insulated interface (RS232)
