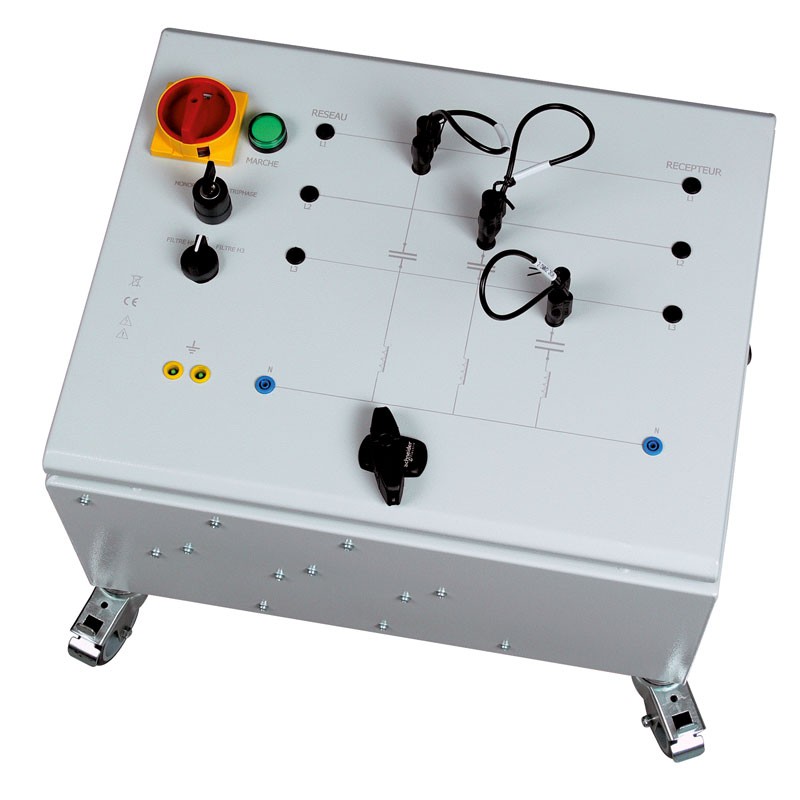

Study of the 3rd & 5th order harmonics
Educational objectives
• Studying, putting into service, getting started and setting of the system
• Studying of harmonic filtering of orders 3 & 5 and the power factor
• Practical corrections of harmonics generated by a speed variator.
FEATURES
• Operation on 230V single-phase network or 230V/400V three-phase network
• Fitted with induction coils and capacitors which have been specially calculated for optimum filtering.
• Equipment sized under rated conditions for 1500W motor test bench controlled by frequency converter.
• Compatible with our frequency converters (pages 63-66)
• Supports the max. effective line current: 15A/H3 max: 10A/H5 max: 5A
• Wiring consisting of 4mm safety leads
• Supplied with instructions for use and tutorials
• Easy to move, thanks to its wheels
• Dimensions: 450 x 450mm Height: 530mm - Weight: 73kg
