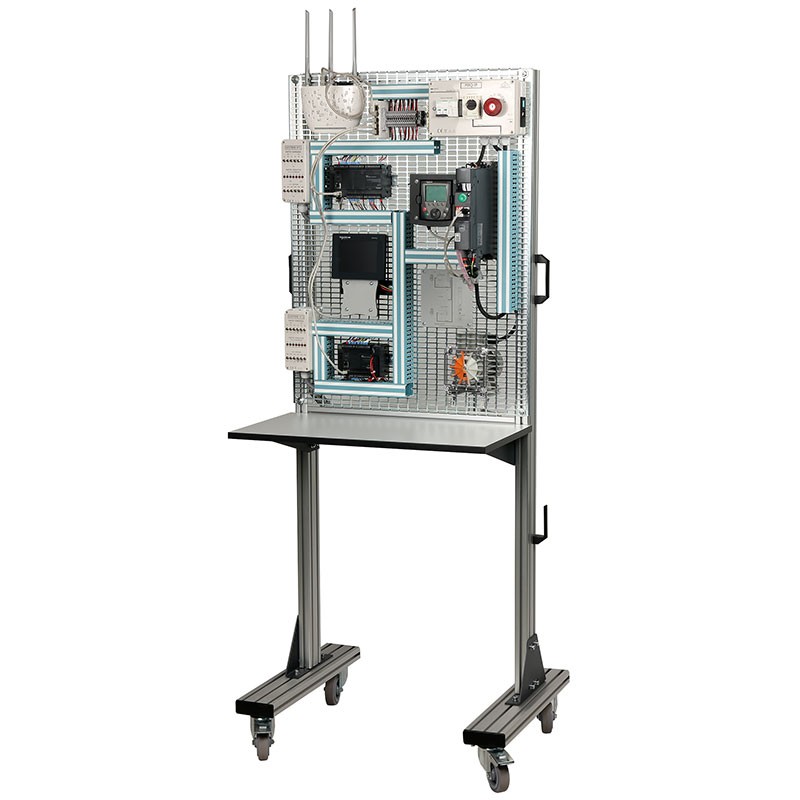

Fieldbus study model (MODBUS - CANOPEN - ETHERNET)

Educational objectives
• Study of field bus communication between different automation components
• Study of Ethernet cabling and creation of an IP network
• Configuring Ethernet components
• Set up a Wifi network and control the components from a tablet
• Configure a variable speed drive
• Configure an HMI
• Configure an automaton
• Configure the association of 2 remote PLCs (MAQ-IP / MAQ-IP-N version only)

Type
Model
Selected reference MAQ-IP
Quantity

Selected reference MAQ-IP
Choose one reference

Practical works
• Creation of a corporate Ethernet IP network with several PCs
• Programming of a programmable logic controller with the integrated or remote Ethernet bus on a TCP/IP interface
• Programming of an HMI interface, touch screen, with the integrated Ethernet bus
• Programming of the variable speed drive from the SoMove software
• Interconnection and configuration of components for global operation
• Use of PLC programming software
• Carry out the Wifi configuration for ordering on a tablet or smartphone.
• Cabling an Ethernet network
• Remote motor control via WiFi via a tablet or smartphone.
• Programming with the HMI software (supplied)
• MAQ-IP / MAQ-IP-N version only
Programming the control of a motor via 2 associated PLCs.

In all the labs, the programming sequences of each component are provided as video files for better understanding by the student.
