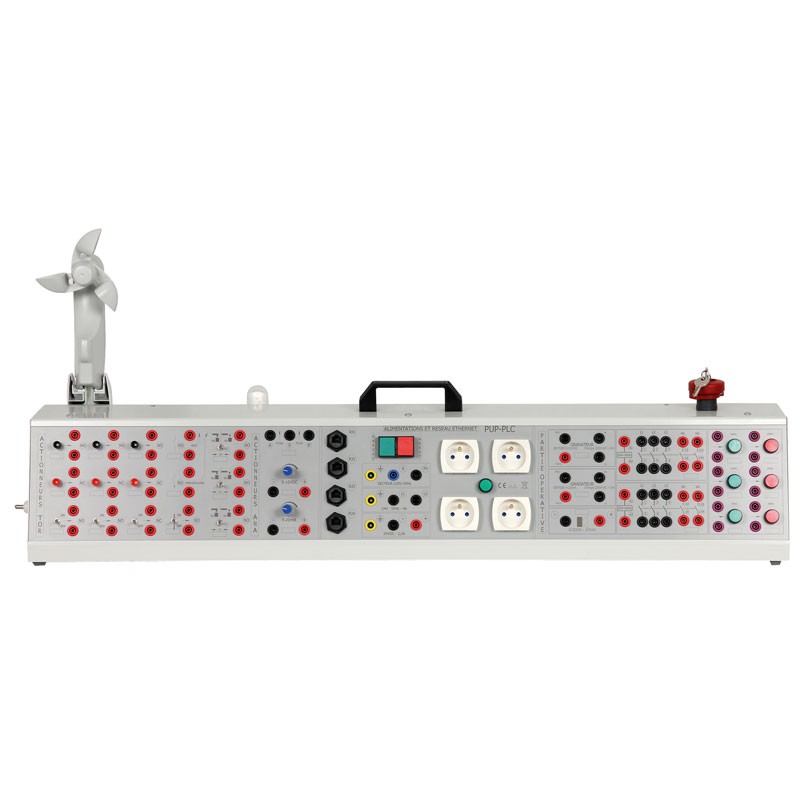

Simulator for checking PLC programming
Checking a PLC program requires the connection of an operative part. PUP-PLC groups together a set of actuators, power supplies and components required for checking programs. Its complete composition provides great comfort for this check.
Composition of the console
• 1 Start / Stop button with indicator light (general control)
• 1 thermal magnetic + RC circuit-breaker 30mA
• 3 pushbuttons NO
• 3 pushbuttons
• 2 ON/OFF switches NO
• 2 ON/OFF switches
• 1 wind sensor, binary contact
• 1 light sensor, binary contact
• 3 limit switches NO
• 1 Temperature sensor PT100, 3-wire output
• 1 voltage generator adjustable by potentiometer from 0 to 10VDC
• 1 current generator adjustable by potentiometer from 4 to 20mA
• 1 dimmer 230VAC with control 0-10VDC
• 1 dimmer 230VAC with control 4-20mA
• 1 buzzer 24VDC
• 2 3-pole contactors 24VAC + 2 auxiliary contacts NO
• 3 green indicator lights 24VAC
• 3 red indicator lights 24VAC
• 1 source of fixed voltage 230VAC 50Hz
• 1 source of fixed voltage 24VDC
• 1 source of voltage 24VAC 50Hz
• 1 carrying handle
