Trainning suitcase for industrial PLC programming

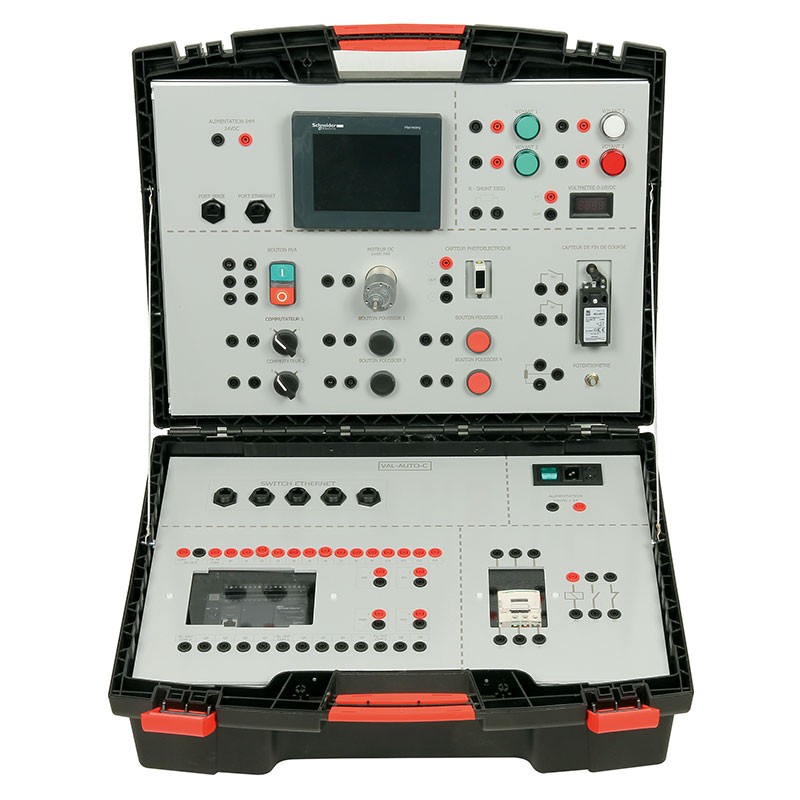

The model simulates an industrial control panel connected to a PLC. It is composed of several buttons and sensors to send discrete and analog signals, thus to program the PLC and to interface the HMI to simulate an industrial process.

The pedagogical folder contains 2 examples of systems to study and simulate:
• A conveyor system, interacting with TOR signals
• A PID control system, interacting with TOR and analog signals

Supervision can be carried out on PC via the Vijeo Designer Schneider® software (provided) or from a tablet with the free application VIJEO DESIGN'AIR FREE downloadable from Apple Store® or Play Store®.

Selected reference VAL-AUTO-C
Quantity

Selected reference VAL-AUTO-C
Selected reference VAL-AUTO-C

EDUCATIONAL OBJECTIVES
• Discover industrial automation
• Set up and program a PLC
• Set up and program an HMI
• Become familiar with supervision
• Study Ethernet / IP addressing
• Study a communication by Wifi

Possible practical works
• Study and realization of an electrical wiring diagram
• Realization of GRAFCET, LADDER and Chronogram diagrams
• Study and wiring of a PLC and various control devices.
• Programming of the PLC in contact language via USB or Ethernet
• Use of PLC programming software
• Ethernet network configuration
• Loading, modifying, creating supervision programs
• Realization of a Wifi configuration to control from from a tablet or a Smartphone
• Connection of the various components to start an operating cycle
