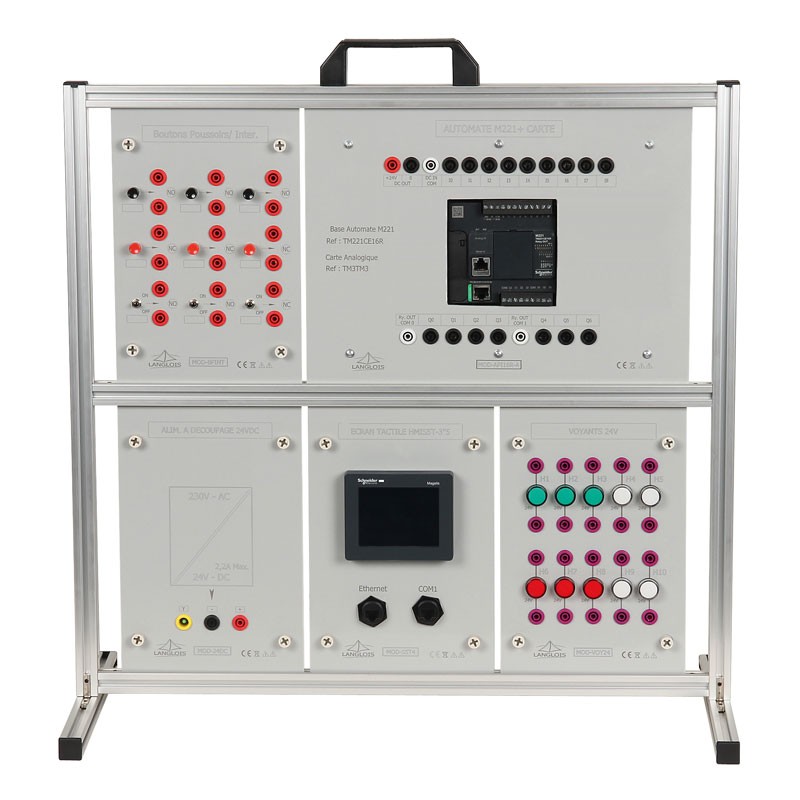

Simplified study of M221 controller

Educational objectives
• To study the connection diagram of the inputs and outputs of a PLC.
• To study the configuration of a computer Ethernet.
• To study the programming of a PLC in contact language.
• To study the programming of an HMI (Human Machine Interface).

Comprises
• 1 Schneider® M221 PLC module. Ethernet. 14 I and 10 O all or nothing.
Supplied with Somachine basic software.
• 1 Schneider® HMI Colour 3.7" module.
Supplied with the VigeoDesigner supervision software.
• 1 power supply module 24VDC
• 1 pushbutton and switch module.
• 1 module of 10 Indicator lights 24VDC.
• 1 set of safety leads for carrying out the different practical works.
