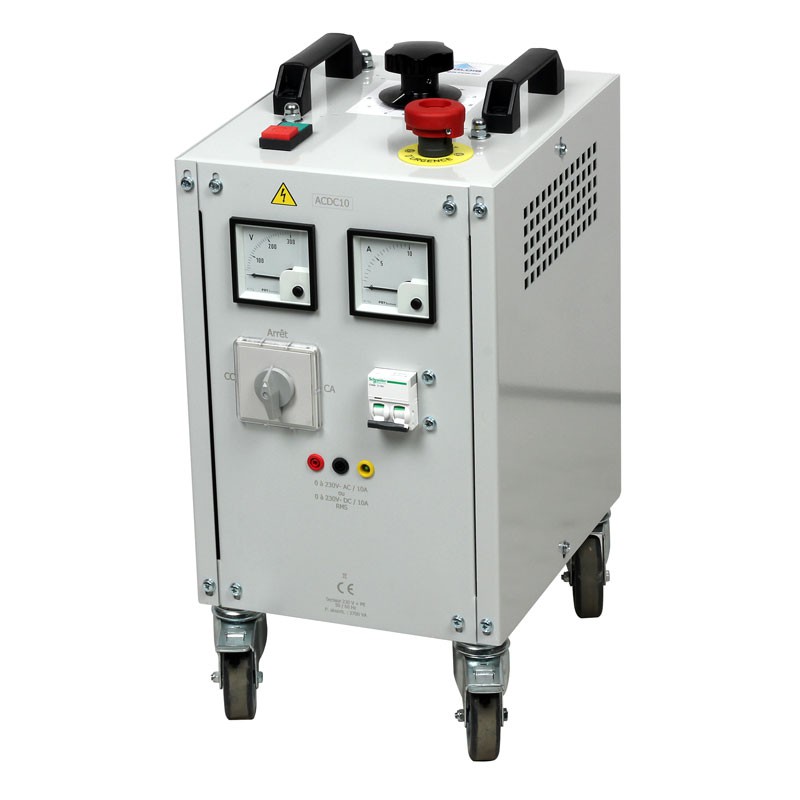

AC/DC power supply on wheels

Supply of AC or DC current in 10A max.AC/DC selector switch on the front of the unit. Mains cable of 3 metres with plug.

Selected reference ACDC10
Quantity

Selected reference ACDC10
Selected reference ACDC10

• Mains supply    230V, single-phase
• ON/OFF    push button + LED lamp
• Emergency stop    with key
• DC output    0-230V
• AC output    0-230V
• Adjustement    by a rotary button on the top
• Max output current    10A
• Outputs display    1 voltmeter et 1 ammeter
• Input protection    by fuse
• Outputs protection    by circuit breaker
• Users protection    by insulation from mains (in DC mode only
• Filtering ACDC10    no filtering. double alternation rectification
• Filtering DC10    with filtering. 5% of residual ripple at 10A.
• Switching    DC – 0 – AC (by rotary switch)
• Dimensions / Weight    H 510 x P 280 x P 330 mm  / 49 kg
• Wheels    4 (2 of them have a brake)
