Variable power supplies

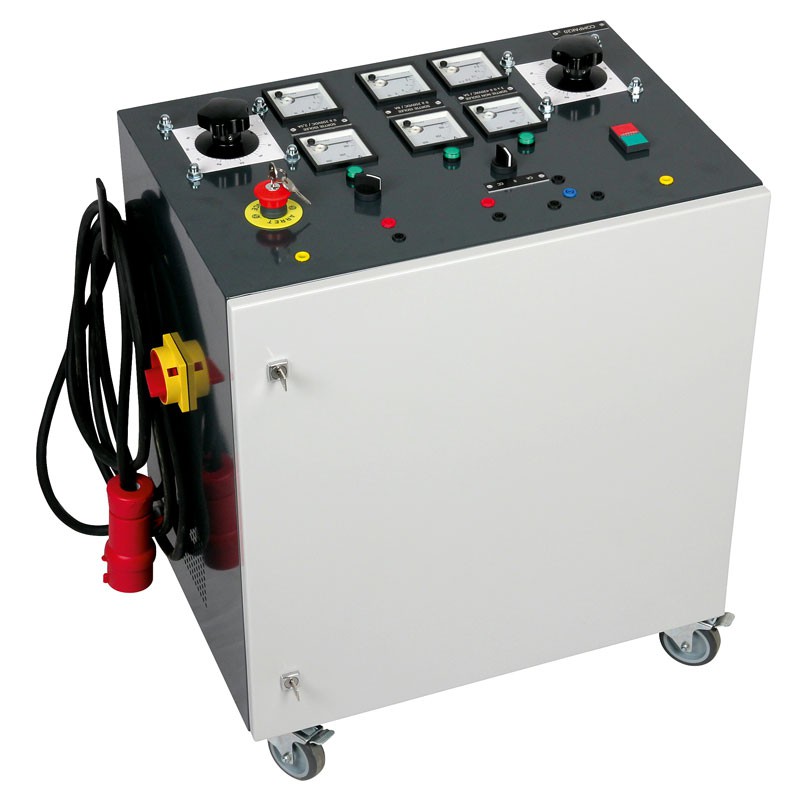

Transportable variable supplies unit (2000W or 4000W). Supply from mains: 3-phase 380V/400V + neutral + earth. Outputs: 2 variable DC supplies 0-250V and 1 variable AC 3-phase supply 0-430V
Protection of the user in DC
• DC supplies are isolated from mains by an insulation transformer.
• The outputs are protected against surges and short-circuits.
Other specifications
• The DC power supply is delivered from a Graetz bridge (Ripple 4%)
• The DC auxiliary outputs is with a double alternation rectification of which the ripple rate changes with the load
• Emergency stop push button - key reset
• Voltage regulation by two autotransformers
• Power cable with industrial 3-phase plug supplied
• Hard-wearing LED lamps
• Outputs on safety terminals Ø 4mm.
• Dimensions 710 x 600 x 375mm - Weight COMPAK20 : 82kg - Poids COMPAK40 : 89kg.
Transportable variable supplies unit (2000W or 4000W). Supply from mains: 3-phase 380V/400V + neutral + earth. Outputs: 2 variable DC supplies 0-250V and 1 variable AC 3-phase supply 0-430V
-
