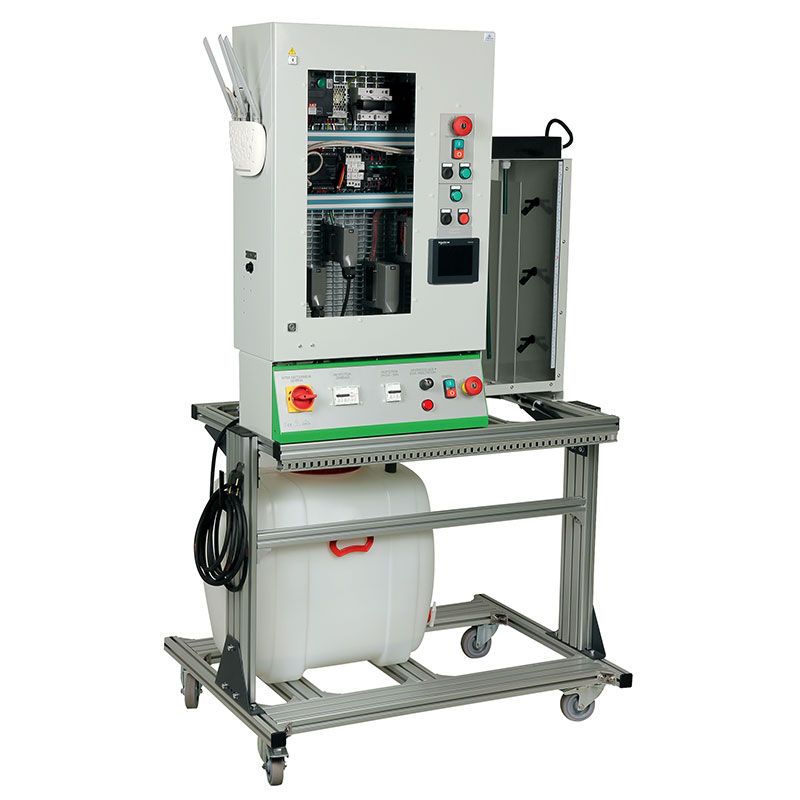

Level control system by means of PLC & touchscreen
REGULEAU is a level control system relying on a PLC and touchscreen, which can be used in three detection modes, using
• 3 binary floats
• 4 height-adjustable conductive probes
• 1 4-20mA hydrostatic pressure sensor
The water drawn from the lower tank supplies the upper tank (where the sensors are located) before running away via a manual valve. The PLC’s PID and the variable flow pump allow a level control.
Educational objectives
• Studying, putting into service, getting started and setting of the system
• Understanding the setting and the programming by PLC
• Understanding the PID level regulation, probes and sensors
COMPONENTS PARTS OF THE MODEL
• 1 100L lower tank
• 1 transparent 60L upper tank, graduated in cm
• 3 level sensors with binary float (24V-3A).
• 4 immersed conductive probes.
• 1 hydrostatic pressure sensor.
Rating: 4-20mA output for 0-600mm water level
• Cabinet and console
• 1 5.7” TFT touchscreen
• 1 4-port RJ45 Ethernet hub
• 1 three-phase speed controller
• 1 PLC with software, fitted with a TCP/IP interface for the RJ45 link to a PC and the touchscreen.
14 Inputs + 10 Binary Outputs (24V)
1 analog input 4-20mA
1 analog output 4-20mA and 0-10V
• 1 Vijeo Designer® software with a complete monitoring program
• 1 30mA residual current circuit breaker. thermal-magnetic circuit breakers
• 230V power supply
• Base with wheels + brake. 1500 x 750mm - Weight 144kg
REGULEAU is a level control system relying on a PLC and touchscreen, which can be used in three detection modes, using
• 3 binary floats
• 4 height-adjustable conductive probes
• 1 4-20mA hydrostatic pressure sensor
The water drawn from the lower tank supplies the upper tank (where the sensors are located) before running away via a manual valve. The PLC’s PID and the variable flow pump allow a level control.
Educational objectives
• Studying, putting into service, getting started and setting of the system
• Understanding the setting and the programming by PLC
• Understanding the PID level regulation, probes and sensors
-
