Study of the 3-phase asynchronous motor & the synchronous machine 300W

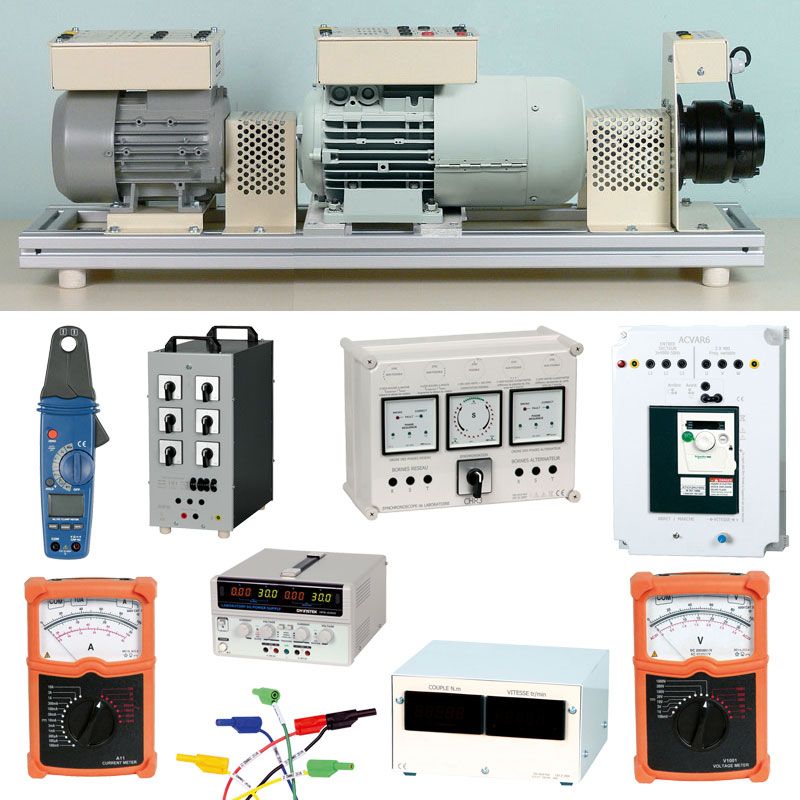

Composition of the set
1 Squirrel cage three-phase induction motor
1 3-phase synchronous machine - alternator
1 Torque sensor
1 DC tachogenerator
1 Variable three-phase power supply
1 Polar wheel power supply
1 Synchronoscope
1 Resistive load
1 Display unit torque and speed
3 Magnétoelectric voltmeters
2 Magnétoelectric ammeters
1 AC & DC multimeter clamp
EDUCATIONAL OBJECTIVES
• Study the stator and the rotor of an asynchronous motor.
• Study the pairs number of poles and the influence on the rotating speed.
• Note, calculate and plot the electrical and mechanical quantities of the motor.
• Realize the balance sheet of motor powers.
• Study the functioning of a synchronous machine in Hypo-synchrone and Hyper-synchrone connected to the national electrical grid.
• Understand the functioning and the use a synchronoscope.
• Study the functioning of a synchronous machine in Hypo-synchrone and Hyper-synchrone connected to a resistive load.
• Note, calculate and plot the electrical and mechanical quantities of the alternator.
• Use an ammeter clamp
Composition of the set
1 Squirrel cage three-phase induction motor
1 3-phase synchronous machine - alternator
1 Torque sensor
1 DC tachogenerator
1 Variable three-phase power supply
1 Polar wheel power supply
1 Synchronoscope
1 Resistive load
1 Display unit torque and speed
3 Magnétoelectric voltmeters
2 Magnétoelectric ammeters
1 AC & DC multimeter clamp
-
