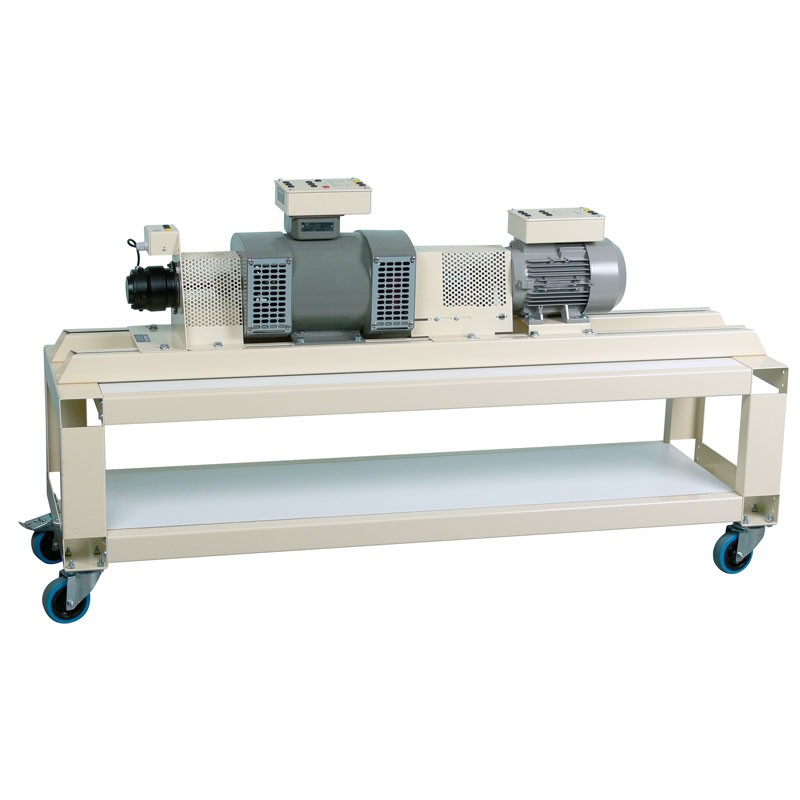

Complete kit 1.5KW asynchronous motor + 3-phase alternator

Operating principle
A 1500W asynchronous motor, powered by a 3 X 400V source, is charged by means of an alternator.
The electrical power generated by the alternator is drained either in the form of an adjustable resistive charge or throughout the public network.
The power consumed by the motor is measured using the “two powers” method by using a wattmeter switch and an analogue wattmeter.
The voltage and current consumed by the motor are measured using an analogue voltmeter and ammeter.
On the alternator, the electrical quantities such as power, voltage and current supply are measured using a digital wattmeter with three displays.
A brushless torque sensor (requiring no maintenance) measures the motor torque, whereas the tachometer generator measures the rotation speed. An analogue unit with three displays shows the torque, speed and useful power values.
