Incremental & absolute encoder
PRACTICAL WORKS
• 3-BIT ABSOLUTE DCB ENCODER correspondence between the position of the disc, the status of the sensors and the display. Transition codes and synchronisation sensor.
• INCREMENTAL DCB ENCODER use of the encoder in counter and count-down mode. Detection of the direction of rotation, improvement of accuracy using an angle sensor.
• 4 BIT GRAY ENCODER GRAY/DCB code comparison. A synchro. sensor is required.

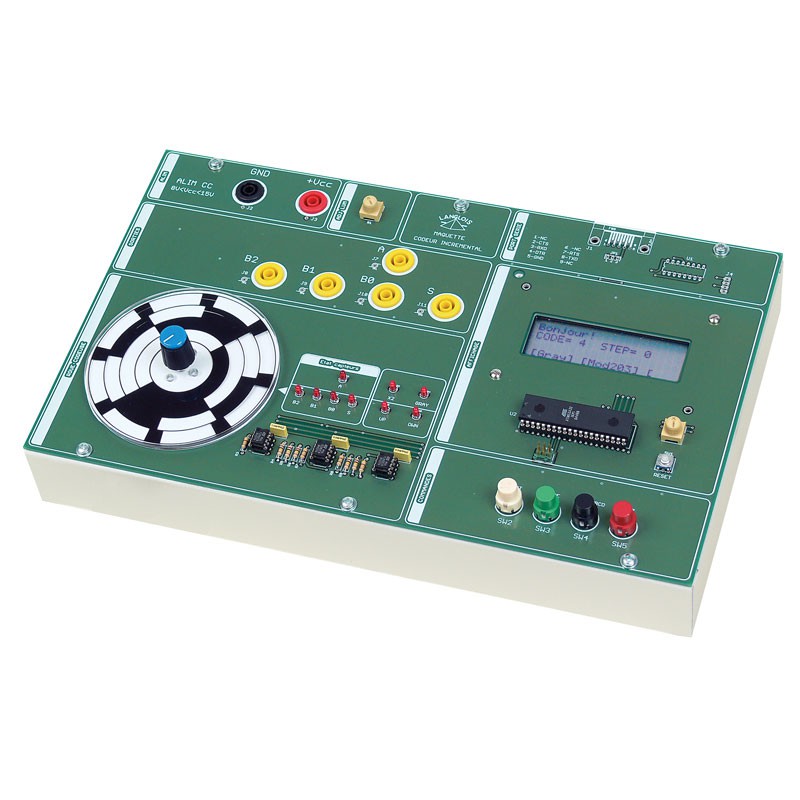

This model illustrates how an incremental encoder and an absolute encoder work. They work in exactly the same way as commercial encoders. However, since resolution is not important in our application, the number of sensors is limited to 5. The model has two interchangeable encoder discs, with the sectors representing DCB encoding and Gray encoding. When the operator turns the disc by hand, the phototransistors underneath send their signals to the decoding logic and the display (4 line x 20 character LCD screen) and to 4mm-diameter terminals, in order to control all of the control or decoding logics performed by the operator. The sensitivity of the phototransistors can be adjusted depending on the ambient light.
PRACTICAL WORKS
• 3-BIT ABSOLUTE DCB ENCODER correspondence between the position of the disc, the status of the sensors and the display. Transition codes and synchronisation sensor.
• INCREMENTAL DCB ENCODER use of the encoder in counter and count-down mode. Detection of the direction of rotation, improvement of accuracy using an angle sensor.
• 4 BIT GRAY ENCODER GRAY/DCB code comparison. A synchro. sensor is required.
-
