Optional artificial solar source

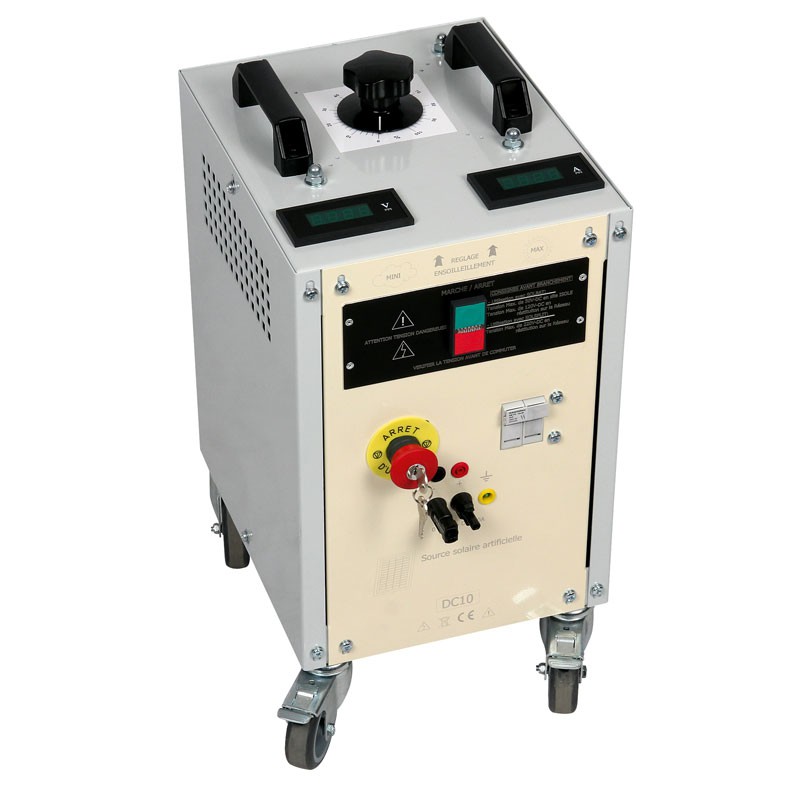

Given that photovoltaic panels do not produce significant power in cloudy conditions, it is not possible to complete the related tutorials. DC10 is a source which, by replacing the solar panels, overcomes unpredictable sunshine.
• Mains input 230V single-phase
• Stop/start switching Push-button + LED indicator lights
• Emergency stop Key operated
• DC output Adjustable from 0 to 230V DC
• Maximum current 10A
• Filtering 5% of residual ripple at 10A.
• Adjustment method Button on the top
• Display of outputs 1 voltmeter and 1 ammeter
• Output terminals in parallel 2 photovoltaic type connectors
2 4mm safety terminals
• Upstream protection By fuse
• Output protection By circuit breaker
• Protection of individuals By safety isolation transformer
• Dimensions/Weight 330 x 280mm height 510mm/49kg
• Castors 4 including 2 with brakes
Given that photovoltaic panels do not produce significant power in cloudy conditions, it is not possible to complete the related tutorials. DC10 is a source which, by replacing the solar panels, overcomes unpredictable sunshine.
-
