Study of Fault Diagnostics on a Solar Installation

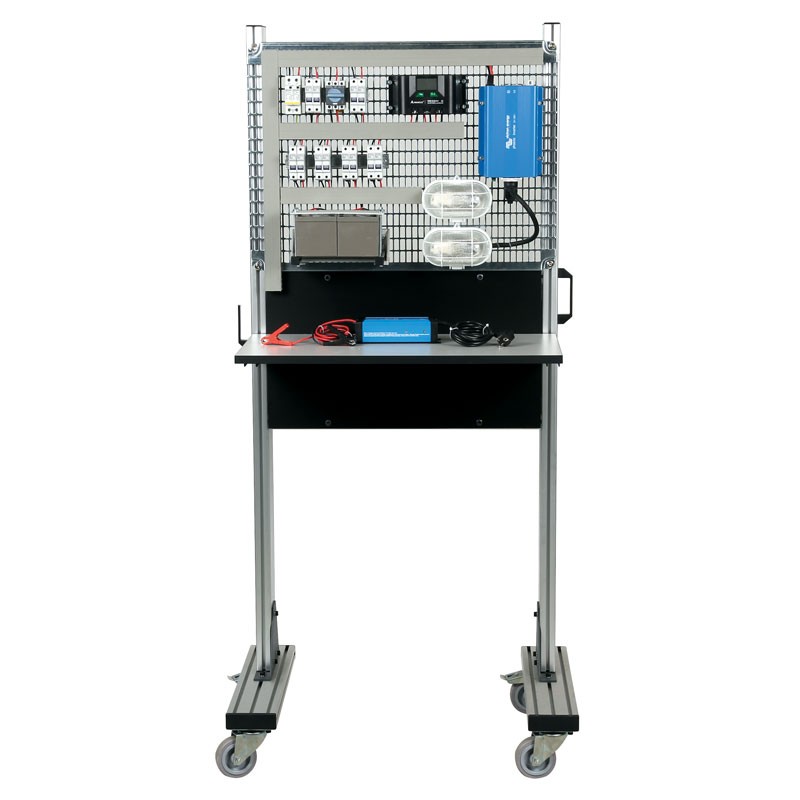

SOL-DIAG is a solar model for producing faults at different points of the wiring. The assembly is comprised of an aluminium frame on casters, a wiring frame with solar components, a set of switches and a separate photovoltaic panel. The faults can be produced by the instructor by rotating single switches. The voltage of the circuit does not exceed 30VDC. Thus students can take measurements or perform tests in complete safety, regardless of the fault type.



Features
Selected reference SOL-DIAG
Quantity

Selected reference SOL-DIAG
Choose one reference

Educational objectives
• To learn and understand the operation of a photovoltaic installation.
• To diagnose faults on a photovoltaic installation in isolated site.
• To take the measurements of the different electrical values.
• Analysing and interpreting the results.
• To study the efficiency of the solar panels.
• To study the energy system (production, storage, use, energy performance).
