Controlled by switch, remote telephone or colour touchscreen, these control lighting, openings (blinds, gates), heating, sprinklers, etc. To familiarize students with the cabling, each electrical component is connected using a terminal strip to its control or receiver module. A removable translucent plate covers the connections and protects the electrical contacts.
Educational objectives
• Understanding of the housing automation made for the housing renovation.
• Understanding of a real and complete solution for a flat.
• Studying the wiring and settings of communicating components.
• Studying the programming and the DELTA DORE solution

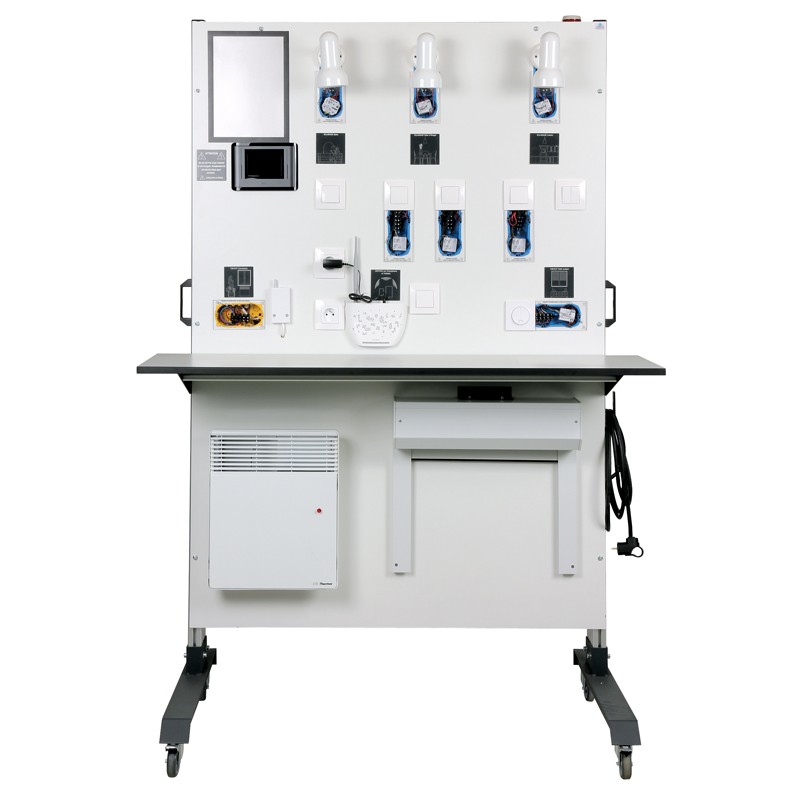

Components located on the panel:
• 1 modular panel equipped with 5 circuit-breakers and one differential 30mA
• 5 lighting circuits "living room" "kitchen" "garage" "garden".
• 3 motor opening circuits: 1 motor roller shutter - 1 garage door and 1 gate (simulated by 2 boxes with indicator lights)
• 1 heater 500W + 1 radio receiver.
• 1 sprinkler pump (simulated by indicator light) + 1 radio receiver.
• 1 remote control by telephone controlling 2 lighting sets or the roller shutter.
All these components are associated with radio transmitters and or receivers
• 1 touchscreen 480x272 pixels capable of managing the radio components of the dwelling with built-in tutorial for component configuration.
